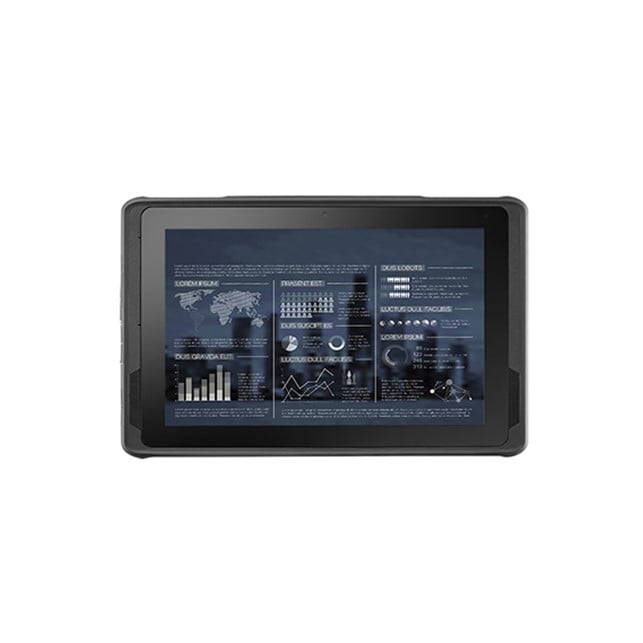

Advantech 10I/4G/64G/WIN10/AC/APAC/GPS/HB/G/ (AIM-68CT-C2108000)
Deskripsi
| Category | Attribute | Value |
| Display | Brightness (cd/m2) | 380cd/m2 |
| Display | Resolution | WUXGA 1200×1920 |
| Display | Type | 10.1″ FHD LCD |
| Storage | eMMC | 64GB |
| I/O Interface | Extended I/O Port | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power |
| I/O Interface | LED | Full: green (100%); Charging: blue; Low: red (≤10%) |
| I/O Interface | Standard I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN |
| Certification | FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | |
| Certification | Safety | Non-SOTI Certified |
| Mechanical | Dimensions (W x H x D) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) |
| Mechanical | Weight | 980g |
| Multimedia | Microphone | 2 x Internal Microphone for Noise Suppression |
| Camera | Front | 2MP Fixed Focus |
| Camera | Rear | 5MP Auto Focus with LED Flash |
| Option | Barcode Scanner | Optional |
| Environment | Certifications | FCC ID, TELEC, NCC, SRRC, RCM |
| Environment | IP Rating | IP65 |
| Environment | Operating Temperature | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) |
| Environment | Safety | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI |
| Environment | Storage Temperature | -20 ~ 70 °C (-4 ~ 158 °F) |
| Wireless Communication | LTE+GPS | V(APAC) |
| Wireless Communication | NFC | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica |
| Wireless Communication | WLAN/Bluetooth | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 |
| Core | Memory | 4 GB |
| Core | Operating System | Windows 10 IoT Enterprise |
| Core | Processor | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) |
Informasi Tambahan
| Brand |
Advantech |
|---|
Produk Terkait

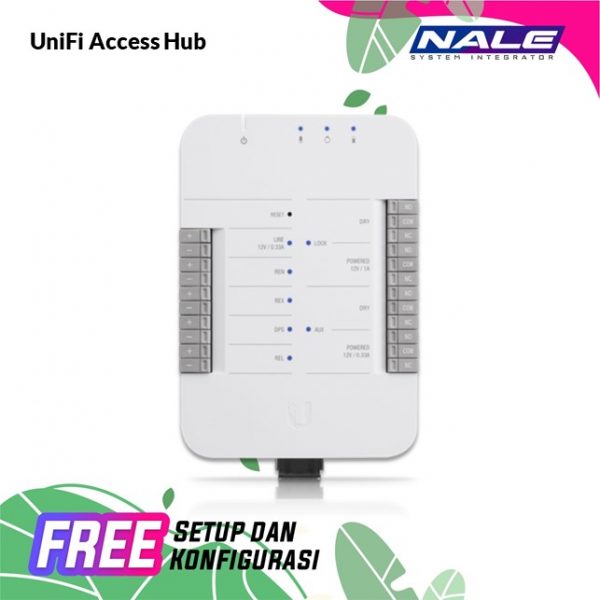

UniFi Access Hub
