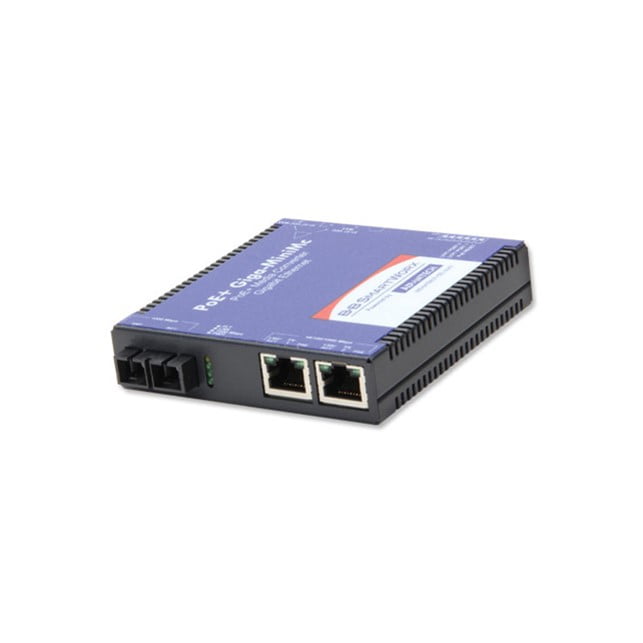

Advantech IMC-390-SM Mini PoE+ Media Converter, 1000Mbps, Single mode 1310nm, 15km, SC (also known as MiniMc 857-11914TG)
- Supports IEEE802.3at PoE+ (25.5W) and IEEE802.3af PoE (15.4W) standards
- Serves as a power sourcing equipment (PSE) device
- Supports jumbo frame functionality (up to 10240 bytes)
- Supports multiple mounting options (desktop, DIN rail or wall-mount)
- Features in configurable PoE reset on fiber LOS
- Supports Link Fault Pass Through (LFPT)
Deskripsi
| Category | Attribute | Value |
| Power | Power Input (AC) | 100 ~ 240 VAC |
| Environment | Humidity (Operating Range) | 5~95% (non-condensing) |
| Environment | Temperature (Operating Range) | 0 ~ 50 °C (32 ~ 122°F) |
| Environment | Temperature (Storage Range) | -35 ~ 75°C (-31~ 167°F) |
| Mechanism | Dimensions (W x H x D) | 2.032 x 9.258 x 9.7 cm (0.8 x 3.645 x 3.82 in.) |
| Mechanism | Number of Slot | 0 |
| Mechanism | Weight | 0.45 kg (1.0 lb) |
| Ethernet Communication | Fiber Port Connector Type | SC Type |
| Ethernet Communication | Fiber Port Number | 1 |
| Ethernet Communication | Fiber Port Optical Mode | Single-Mode |
| Ethernet Communication | Fiber Transmission Distance | 15 km |
| Ethernet Communication | Fiber Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | Fiber Transmission Wavelength | 1310 nm |
| Ethernet Communication | RJ-45 Port Number | 0 |
| Certification | EMC | CE, FCC Class A, CSA |
| Certification | Safety | UL/cUL |
| PoE Information | PoE Port Number | 2 |
| PoE Information | PoE-PSE | Yes |
Informasi Tambahan
| Brand |
Advantech |
|---|
