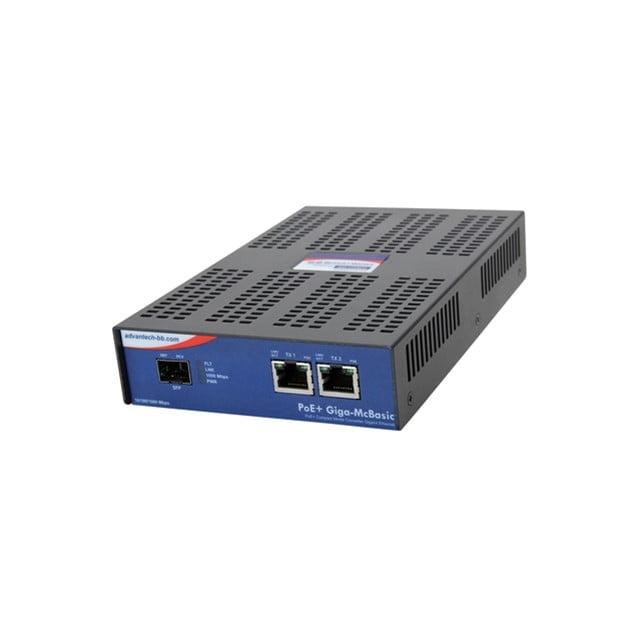

Advantech IMC-490-M1 Standalone PoE+ Media Converter, 1000Mbps, Multimode 1300nm, 2km, SC
- Supports one fixed optical connector with single-mode, multi-mode, or SFP,and two RJ-45 ports
- One RJ-45 port serves as PoE-PSE
- Supports internal AC power
- IEEE802.3at/af compliant (IMC-490) or IEEE802.3af compliant (IMC-480)
- Supports jumbo frame functionality (up to 10240 bytes)
- Supports configurable PoE reset on fiber Loss of Signal (LOS)
- Support Link Fault Pass Through (LFPT)
Deskripsi
| Category | Attribute | Value |
| Power | Power Input (AC) | 100 ~ 240 VAC |
| Environment | Humidity (Operating Range) | 5~95% (non-condensing) |
| Environment | Temperature (Operating Range) | 0 ~ 50 °C (32 ~ 122°F) |
| Environment | Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
| Mechanism | Dimensions (W x H x D) | 12.09 x 3.71 x 18.59 cm (4.76 x 1.46 x 7.32 in.) |
| Mechanism | Weight | 0.58 kg (1.3 lb) |
| Ethernet Communication | Fiber Port Connector Type | SC Type |
| Ethernet Communication | Fiber Port Number | 1 |
| Ethernet Communication | Fiber Port Optical Mode | Multi-Mode |
| Ethernet Communication | Fiber Transmission Distance | 2 km |
| Ethernet Communication | Fiber Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | Fiber Transmission Wavelength | 1300 nm |
| Ethernet Communication | RJ-45 Port Number | 1 |
| Certification | EMC | CE, FCC Class A |
| Certification | Safety | UL/cUL, CSA |
| PoE Information | PoE Port Number | 1 |
| PoE Information | PoE-PSE | PoE+ 30W |
Informasi Tambahan
| Brand |
Advantech |
|---|
