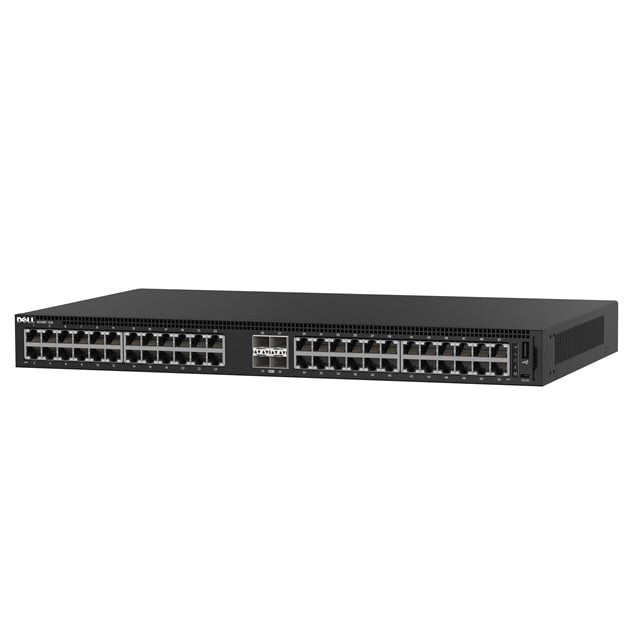

Dell Networking N1148T-ON, L2, 48 ports
Rp81.684.900
Deskripsi
Specifications:
Legend: S — Standard AO — Available Optional N — Not Available
| N1108P-ON / N1108T-ON | N1124P-ON / N1124T-ON | N1148P-ON / N1148T-ON | |
|---|---|---|---|
| Chassis | |||
| Approximate Weight in pounds | 4.43lbs / 3.54lbs | 8.33lbs / 6.72lbs | 9.19lbs / 8.33lbs |
| Approximate Weight in kilograms | 2.01kg / 1.61kg | 3.78kg / 3.05kg | 4.17kg / 3.78kg |
| Power Supply (Watts) | 104W AC / 24W AC | 250W AC / 40W AC | 500W AC / 60W AC |
| Max Thermal Output (BTU/hr) | 292.62 / 35.72 | 851.66 / 65.85 | 1566.15 / 102.98 |
| Power Consumption Max (Watts) | N / 10.47 | N / 19.3 | N / 30.18 |
| Dimensions in inches (H x W x D) | 1.75 in x 8.5 in x 10 in | 1.75 in x 17 in x 10 in | 1.75 in x 17 in x 10 in |
| Dimensions in millimeters (H x W x D) | 44.45 mm x 215.9 mm x 254 mm | 44.45 mm x 431.8 mm x 254 mm | 44.45 mm x 431.8 mm x 254 mm |
| Environmental Operating Conditions | |||
| Operating temperature | 0° to 45°C (32° to 113° F) | ||
| Storage temperature | -40° to 65° C (-40° to 149° F) | ||
| Operating relative humidity | 95% | ||
| Storage relative humidity | 85% | ||
| Power Supply Efficiency: | 80% or better in all operating modes | ||
| Performance | |||
| Switch fabric capacity | 24Gbps | 128Gbps | 176Gbps |
| Forwarding rate | 18Mpps | 96Mpps | 132Mpps |
| Packet buffer memory | 2MB | 2MB | 2MB |
| Port Attributes | |||
| 1GbE Port Attributes Multi-speed | 8x 10/100/1000Mbps half/full duplex ports | 24x 10/100/1000Mbps half/full duplex ports | 48x 10/100/1000Mbps half/full duplex ports |
| 1GbE Port Attributes Single-speed | 2x 1000Mbps half/full duplex RJ45 ports | N/A | N/A |
| Integrated 1GbE SFP dedicated ports | 2 | N/A | N/A |
| Integrated 10GbE SFP+ dedicated ports (10 Gbps) | N/A | 4 | 4 |
| Power-over-Ethernet Plus (PoE/PoE+) Ports | 4 / N | 12 / N | 24 / N |
| Auto-negotiation for speed and flow control | S | S | S |
| Auto MDI/MDIX | S | S | S |
| Port mirroring and Flow-based port mirroring | S | S | S |
| Broadcast storm control | S | S | S |
| Energy Efficient Ethernet per port settings | S | S | S |
| Port Profile support including Admin profiles | S | S | S |
| Management & Configuration-Port Attributes | 1 USB (Type A) port for configuration | ||
| Power | |||
| Integrated power supply (not removable) | S | S | S |
| Air flow | IO to PSU (Normal) | IO to PSU (Normal) | IO to PSU (Normal) |
| Switch Attributes | |||
| Line-rate Layer 2 switching | S | S | S |
| Dual firmware images on-board | S | S | S |
| Temperature sensors for environmental monitoring | S | S | S |
| Cable diagnostics | S | S | S |
| Switch auditing support | S | S | S |
| CPU Memory | 1GB | 1GB | 1GB |
| Flash Memory | 1GB | 1GB | 1GB |
