H3C 55V 60W PoE Adapter Power Supply
Rp1.907.645

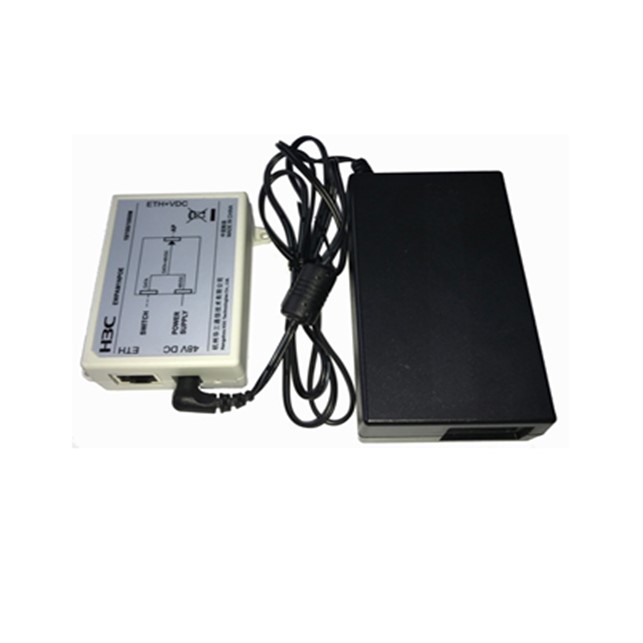

H3C 54V 40W High Power Adapter Power Supply (ADP040-54V-PoE-GL)
Rp1.283.324
Deskripsi
spesifikasi H3C 54V 40W
| Size（L×W×H） | Adapter: 110mm × 62mm × 31.5mm
Injector: 79mm × 70mm × 31mm |
| Weight | 282g |
| Input Voltage | 90V AC～264V AC; 47~63Hz |
| Input Current | 1.5A Max, at 115Vac, Full load
0.8A Max, at 230Vac, Full load |
| Input Connector* | IEC320 C14 |
| Output Voltage | 54V |
| Output rated current | 0.74A |
| Output Power | 40W |
| Output Connection | Pins 4,5(+) Pins 7,8 (-) |
| Power Efficiency | Level VI |
| Protection | OCP,OVP,SCP |
| Temperature | Operation: -10℃～45℃
Non-operation: -40℃～70℃ |
| Humidity（Non-condensing） | 5%～95% |
| Altitude | Up to 5000m |
| EMC | EN 55032: RE,CE
CISPR 32: RE,CE IEC 61000-4-2: ESD IEC 61000-4-3: RS IEC 61000-4-4: EFT IEC 61000-4-5: Surge IEC 61000-4-6: CS IEC 61000-4-11: DIPS |
| Safety Approvals | CE,TUV,UL,CCC |
