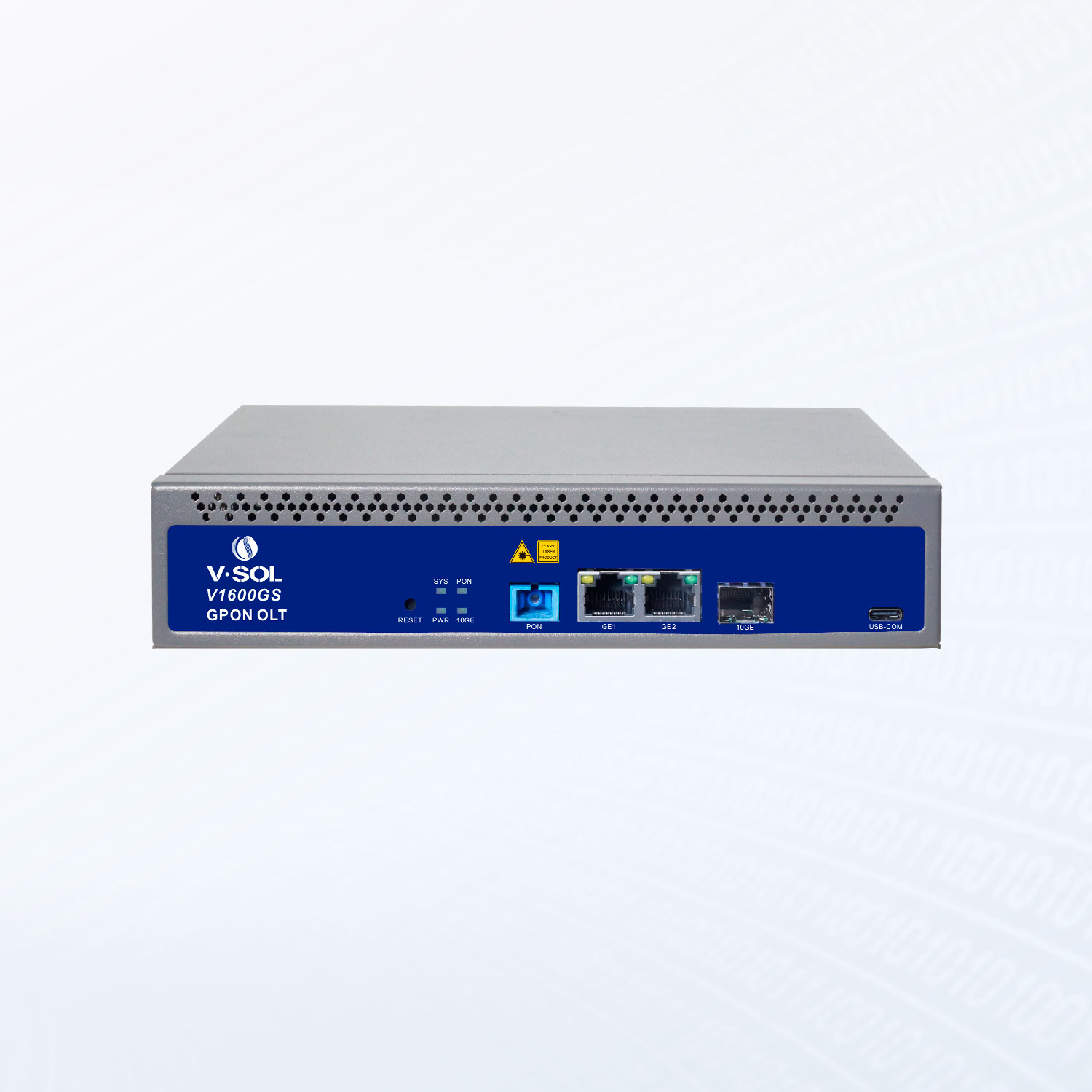

V1600GS-F V-SOL Single pon GPON OLT (With Fan)
Rp3.450.124
Deskripsi
Specifications
| Model | V1600GS-F |
| Uplink Port | QTY : 3 |
| RJ45(1G) : 2 | |
| SFP(1G)/SFP+(10G) : 1 | |
| GPON Port | QTY : 1 |
| Fiber Type : 9/125μm SM | |
| Connector : SC/UPC, Class C++/C+++ Class C++ : TX>6.5dBm, Sen: -32dBm Class C+++ : TX>7.5dBm, Sen: -33dBm |
|
| GPON port speed Upstream : 1.244Gbps Downstream : 2.488Gbps |
|
| Wavelength TX : 1490nm RX : 1310nm |
|
| Max splitting ratio : 1:128 | |
| Transmission Distance : 20KM | |
| Management Port | 1*USB-COM(Type-C) port |
| Backplane Bandwidth (Gbps) | 16 |
| Port Forwarding Rate(Mpps) | 23.808 |
| Management Mode | WEB/Telnet/CLI/SNMP |
| Lightning Protection Level |
Power supply : 4KV Device Interface : 1KV |
| Power supply | AC : Working Voltage Range: 100~240V, Rated Voltage: 110V/220V DC : 12V/2A |
| Working temperature | -20 ~ +60 C |
| Storage temperature | -40 ~ +70 C |
| Relative Humidity | 5 ~ 95% (Non-condensing) |
| Dimension (L*W*H) | 210 x 173 x 43.6 mm |
